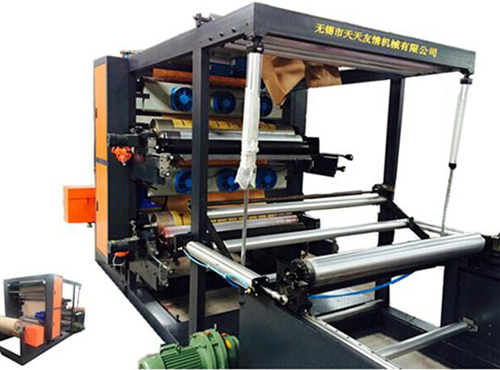

This equipment made by casting material, the base material is made by flexible version of photosensitive resin, rubber as base material, through the anilox roller transfer ink, ink printing on substrates by liquid press.
The whole machine adopts wired control, the main unit is formed by unwinding unit, tension control unit, traction feeding unit, printing unit, drying unit . The unwinding unit is controlled by automatic correction system device, it is a tiny deviation in feeding, automatically correct paper device, the whole machine is controlled by PLC centralized control system.
This machine structure is reasonable, high printing speed and simple operation. Using scope: chemical bag, cement bag, food packaging bags, handbags and other industries.
Main Parameters:
Type：FD1250 Effective printing width：1160mm
Base material Max. width：1250mm Paper weight：70gm2-140gm2
Printing speed ：10m/min-80m/min Wind and unwinding roll max. dia.：Φ1300mm
Printing length：260-1370mm Printing precision：±0.3mm
Oven heating power：6.4kw Total power：15.2kw
Machine weight：3500kg Out dimension：4400×2100×2200(mm)
